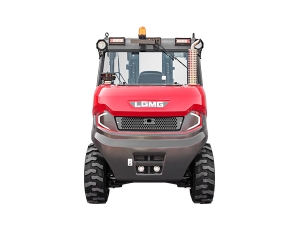

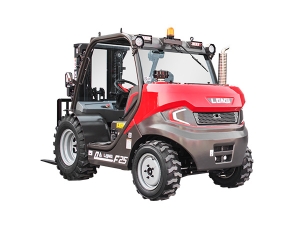

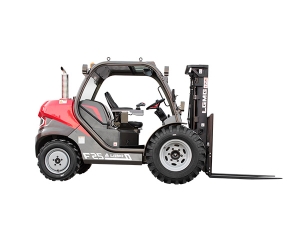

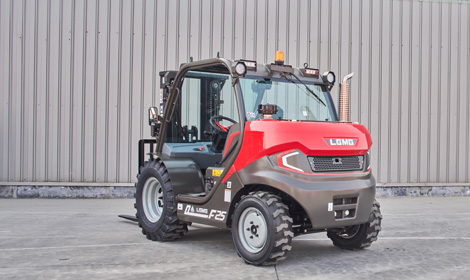

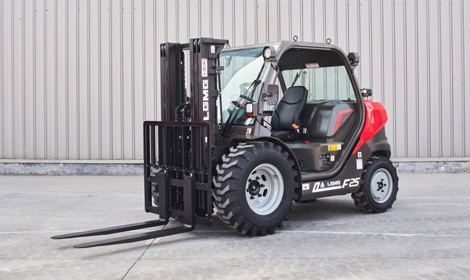

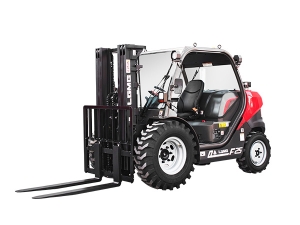

LGIV Forklift _Lingong Heavy Machinery Co., Ltd.

Manufacturer's type designation		F25
Power type	/	Diesel
Type of operation	/	Seated
Q-Load capacity/rated load	Q(kg)	2500
c-Load centre distance	c(mm)	500
x-Load distance,centre of drive axle to fork	x(mm)	621
Wheelbase	y(mm)	1900
Weights
Service weight	kg	4350
Laden weight on front/rear axle	kg	5817/1050
Unladen weight on front/rear axle	kg	1859/2491
Wheels、Chassis
Type:solid rubber,superelastic,pneumatic,polyurethane	/	Pneumatic
Tyres size,front	/	12.5/80-18/12
Tyres size,rear	/	28×9-15
Wheels,number front/rear(x=driven wheels)	/	2×/2×
Front track	b10(mm)	1160
Rear track	b11(mm)	1190
Basic Dimensions
Mast tilt forward/backward	α/β(°)	10/12
lowered mast height	h1(mm)	1975
Free lift	h2(mm)	1200
Lift height	h3(mm)	3400
Extended mast height	h4(mm)	4435
Overhead load guard height	h6(mm)	1975
Seat height	h7(mm)	975
Overall length	l1(mm)	4260
Overall width	b1(mm)	1495
Fork dimensions	s/e/l(mm)	40×122×122
Fork carriage ISO2328 (class/form) A/B	/	2A
Fork carriage width	b3(mm)	1100
Ground clearance below mast	m1(mm)	300
Ground clearance at center of wheelbase	m2(mm)	300
Turning radius	Wa(mm)	3512
Engine
Engine Type	/	V2403
Engine power according to ISO 1585	KW	36
Rated speed	rmp	2600
Number of piston/Capacity of pistons	/ml	4/2434
Drive control
Type of drive control	/	Hydrostatic transmission
Other Details
Working hydraulic pressure for attachments	bar	180
Oil flow rate for attachments	L/min	38
Hydraulic oil tank capacity	L	56
