T26J(T85J)
  • T26J(T85J)
  • T26J(T85J)
  • T26J(T85J)
  • T26J(T85J)

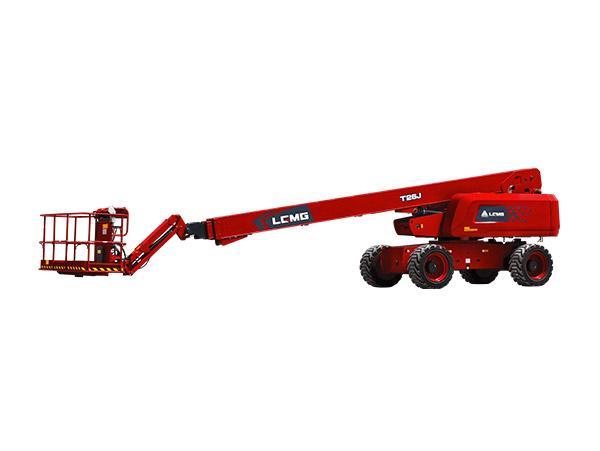

T26J(T85J)

LGMG T Series telescopic boom lifts offer great outreach with high working efficiency. Its exceptional all terrain capacities allow the machine to operate on the roughest ground and complete the tasks on time.


l Oscillating axels and four-wheel drive delivers better gradeability on rough terrain.

l Proportional control ensures smooth driving, precise positioning and comfortable operation.

l Continuous 360° turntable rotation expands the operational area and makes operations more convenient.

l Swing out engine tray for easy access and maintenance.

l Intelligent self-diagnostic system for quick troubleshooting.


Platform Capacity

250/340kg(551/750lbs)

Max. work height

27.9m(91.5ft)
  • Specifications
  • Options
Specifications
Models T26J T85J
Measurements
Work Height Max. 27.9m 91.5ft
Platform Height 25.9m 84.9ft
Horizontal Outreach 23.32m 76.5ft
Below Ground Reach 2.89m 9.48ft
Platform Length 2.44m 96in
Platform Width 0.91m 36in
Platform Capacity 250/340kg 551/750lbs
A-Stowed Length 12.6m 41.3ft
B-Overall Width 2.5m 8.2ft
C-Stowed Height 2.86m 9.38ft
D-Wheelbase 2.85m 9.35ft
E-Ground Clearance 0.44m 1.44ft
Productivity
Max. Platform Occupants 2 2
Turntable Rotation 360°Continuous
Turntable Tailswing 1.42m 4.66ft
Drive Speed-Stowed 4.8km/h 3mph
Drive Speed-Raised 0.5km/h 0.5mph
Gradeability-Stowed 45%
Max. Wind Speed 12.5m/s 28mph
Turning Radius-Inside 3.66m 12ft
Turning Radius-Outside 6.55m 21.5ft
Max.Slope 2.5/4.5°
Tries Type RT Foam-filled
Tires Size 18-625
Power
Power

Deutz TD2.9L4 55.4kw/74.3hp

Fuel Tank Capacity 100L 26.4gal
Hydraulic System
Hydraulic Oil Capacity 180L 47.5gal
Weight
Machine Weight(CE) 18000kg 39683lbs
Options

Standard features

Proportional control

Tilt alarm with lift cut-out

Overload sensing system

Descent alarm with flashing beacon

Platform auto-leveling system

Emergency stop button

On-board diagnostic system

Oscillating axle

Four-wheel drive and break

Overtilt protection system

Anti-crush protection

Horn/Hour meter


Options

AC power to platform

Platform tool box

EuroⅤ engine

T4F engine
