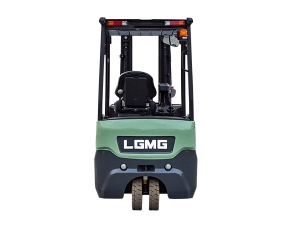

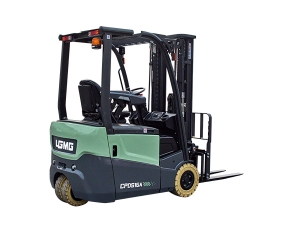

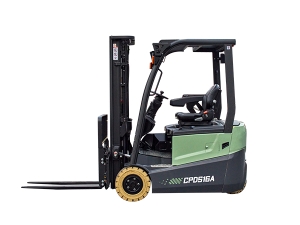

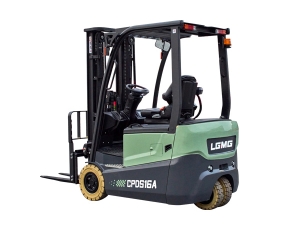

| Manufacturer's type designation |
| CPDS16A | CPDS18A | CPDS20A |
| Drive | / | Electric | Electric | Electric |
| Type of operation | / | Seated | Seated | Seated |
| Load capacity/rated load | Q(kg) | 1600 | 1800 | 2000 |
| Load centre distance | c(mm) | 500 | 500 | 500 |
| Load distance,centre of drive axle to fork | x(mm) | 372 | 377 | 377 |
| Wheelbase | y(mm) | 1360 | 1360 | 1490 |
| Weights |
| Service weight incl.battery | kg | 3060 | 3160 | 3420 |
| Axle loading, laden front/rear | kg | 4160/500 | 4450/510 | 4880/540 |
| Axle loading, unladen front/rear | kg | 1470/1610 | 1530/1650 | 1670/1750 |
| Wheels、Chassis |
| Type:solid,pneumatic | / | Solid | Solid | Solid |
| Tyres size,front | / | 18x7-8 | 18x7-8 | 200/50-10 |
| Tyres size,rear | / | 15X4 1/2-8 | 15X4 1/2-8 | 15X4 1/2-8 |
| Wheels,number front/rear(x=driven wheels) | / | 2x/2 | 2x/2 | 2x/2 |
| Track width,front | b10(mm) | 960 | 960 | 984 |
| Track width,rear | b11(mm) | 180 | 180 | 180 |
| Basic Dimensions |
| Mast/fork carriage tilt forward/backward | α/β(°) | 5/7 | 5/7 | 5/7 |
| Lowered mast height | h1(mm) | 2008 | 2008 | 2008 |
| Free lift | h2(mm) | 125 | 125 | 125 |
| Lift height | h3(mm) | 3000 | 3000 | 3000 |
| Extended mast height | h4(mm) | 3981 | 3981 | 3981 |
| Height of overhead guard | h6(mm) | 2075 | 2075 | 2075 |
| Seat height | h7(mm) | 1030 | 1030 | 1030 |
| Coupling height | h10(mm) | 465 | 465 | 465 |
| Overall length | l1(mm) | 2845 | 3000 | 3130 |
| Length to face of forks | l2(mm) | 1925 | 1930 | 2060 |
| Overall width | b1(mm) | 1135 | 1135 | 1150 |
| Fork dimensions | s/e/l(mm) | 35/100/920 | 40/100/1070 | 40/100/1070 |
| Fork carriage width | b3(mm) | 1040 | 1040 | 1040 |
| Ground clearance,laden,under mast | m1(mm) | 123 | 123 | 123 |
| Ground clearance,centre of wheelbase | m2(mm) | 105 | 105 | 105 |
| Aisle width for pallets 1000x1200 crossways | Ast(mm) | 3248 | 3253 | 3383 |
| Aisle width for pallets 800x1200 lengthways | Ast(mm) | 3373 | 3377 | 3507 |
| Turning radius | Wa(mm) | 1550 | 1550 | 1680 |
| Performance Data |
| Travel speed,laden/unladen | km/h | 14/15 | 14/15 | 14/15 |
| Lift speed,laden/unladen | m/s | 0.32/0.42 | 0.32/0.42 | 0.32/0.42 |
| Lowering speed,laden/unladen | m/s | <0.6 | <0.6 | <0.6 |
| Max.drawbar pull,laden/unladen | N | 8500/7800 | 8500/7800 | 8800/8000 |
| Max.Gradient performance,laden/unladen S2 5 min | % | 15/20 | 15/20 | 13/18 |
| Service brake | / | Hydraulic | Hydraulic | Hydraulic |
| E-Motor |
| Drive motor rating S2 60 min | kw | 4.5x2 | 4.5x2 | 4.5x2 |
| Lift motor rating at S3 15% | kw | 8.6 | 8.6 | 8.6 |
| Battery standard | / | Lion | Lion | Lion |
| Battery voltage/nominal capacity K5 | V/Ah | 51.2/277 | 51.2/277 | 51.2/277 |
| option:51.2/412 | option:51.2/554 | option:51.2/554 |
| Battery dimensions l/w/h | mm | 980x538x670 | 980x538x670 | 980x668x670 |
| Other Details |
| Type of drive control | / | AC | AC | AC |
| Operating pressure for attachments | MPa | 17.5 | 17.5 | 17.5 |
| Oil volume for attachments | l/min | 36 | 36 | 36 |
| Sound level at driver's ear according to EN 12053 | dB/(A) | 70 | 70 | 70 |
