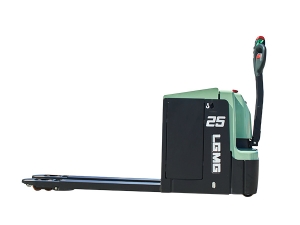

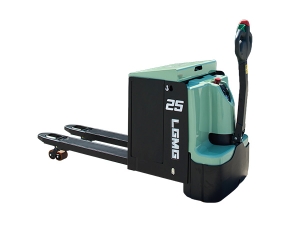

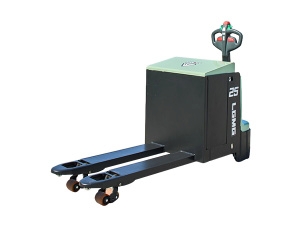

  Manufacturer's Type Designation |
| CBDB16A | CBDB20A | CBDB25A |
Drive | / | Battery |
Type of operation | / | Pedestrian |
Load capacity/rated load | Q(t) | 1.6 | 2.00 | 2.5 |
Load centre distance | c(mm) | 600 |
Load distance,centre of drive axle to fork | x(mm) | 892 |
Wheelbase | y(mm) | 1261 | 1327 | 1541 |
Weight |
Service weight incl.battery | kg | 445 | 535 | 720 |
Axle loading, laden front/rear | kg | 715/1330 | 855/1680 | 1040/2200 |
Axle loading, unladen front/rear | kg | 345/100 | 415/120 | 540/200 |
Wheels/ Chassis |
Tires | / | PU |
Tire size, front | Φx w(mm) | Φ 230×70 |
Tire size, rear | Φx w(mm) | Φ 84×84 |
Additional wheels(dimensions) | Φx w(mm) | Φ 100×40 |
Wheels, number front/rear(x=driven wheels) | / | 1x+2/4 |
Track width, front | b10(mm) | 510 |
Track width, rear | b11(mm) | 367/512 |
Basic Dimemsions |
Lift height | h3(mm) | 120 |
Height of tiller in driving position min./max. | h14(mm) | 800/1335 |
Height, lowered | h13(mm) | 85 |
Overall length | l1(mm) | 1670 | 1735 | 1950 |
Length to face of forks | l2(mm) | 520 | 595 | 810 |
Overall width | b1(mm) | 729 |
Fork dimensions | s/e/l(mm) | 60/173/1150 |
Width across forks | b5(mm) | 540/685 |
Ground clearance,centre of wheelbase | m2(mm) | 25 |
Aisle width for pallets 1000X1200 crossways | Ast(mm) | 1885 | 1955 | 2175 |
Aisle width for pallets 800X1200 crossways | Ast(mm) | 1935 | 2005 | 2225 |
Turning radius | Wa(mm) | 1440 | 1490 | 1750 |
Performance Data |
Travel speed,laden/unladen | km/h | 5.7/6.0 | 5.7/6.0 | 5.5/6.0 |
Lift speed,laden/unladen | m/s | 0.025/0.035 | 0.022/0.030 | 0.035/0.045 |
Lowering speed,laden/unladen | m/s | 0.035/0.030 | 0.035/0.035 | 0.040/0.040 |
Max. gradeability, laden/unladen | % | 8/15 |
Service brake | / | Electromagnetic |
E-Motor |
Drive motor rating S2 60min | kW | 1.3 | 1.3 | 1.7 |
Lift motor rating at S3 10% | kW | 0.8 | 0.8 | 2.2 |
Battery | / | Lion | Lion | Lion |
Battery voltage/nominal capacity K5 | V/Ah | 25.6/100 | 25.6/100 | 25.6/150 |
Addition Data |
Type of drive control | / | AC |
Sound level at driver's ear acc. to EN 12053 | dB(A) | <70 |
