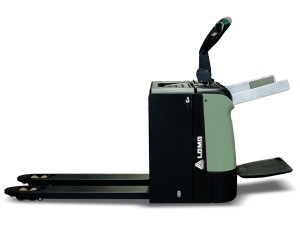

LGIV Forklift _Lingong Heavy Machinery Co., Ltd.

Manufacturer's Type Designation		CBD20	CBD25
Drive	/	Battery
Type of operation	/	Pedestrian/Stand
Load capacity/rated load	Q(t)	2.0	2.5
Load centre distance	c(mm)	600
Load distance,centre of drive axle to fork	x(mm)	892¹⁾
Wheelbase	y(mm)	1330¹⁾²⁾	1435¹⁾
Weight
Service weight incl.battery	kg	620	770
Axle loading, laden front/rear	kg	1110/1510	1370/1900
Axle loading, unladen front/rear	kg	500/120	610/160
Wheels/ Chassis
Tires	/	PU
Tire size, front	Φx w(mm)	Φ 230×70
Tire size, rear	Φx w(mm)	Φ 84×84
Additional wheels(dimensions)	Φx w(mm)	Φ 100×40
Wheels, number front/rear(x=driven wheels)	/	1x+2/4
Track width, front	b10(mm)	540
Track width, rear	b11(mm)	367/512
Basic Dimemsions
Lift height	h3(mm)	120
Height of tiller in driving position min./max.	h14(mm)	950/1350
Height, lowered	h13(mm)	85
Overall length	l1(mm)	1790²⁾³⁾	1895
Length to face of forks	l2(mm)	640²⁾³⁾	745³⁾
Overall width	b1(mm)	790
Fork dimensions	s/e/l(mm)	55/173/1150
Width across forks	b5(mm)	540/685
Ground clearance,centre of wheelbase	m2(mm)	30
Aisle width for pallets 1000X1200 crossways	Ast(mm)	2400²⁾³⁾	2505³⁾
Aisle width for pallets 800X1200 crossways	Ast(mm)	2290²⁾³⁾	2395³⁾
Turning radius	Wa(mm)	1585²⁾³⁾	1690³⁾
Performance Data
Travel speed,laden/unladen	km/h	7.5/8.0	6.0/7.0
Lift speed,laden/unladen	m/s	0.025/0.030	0.035/0..045
Lowering speed,laden/unladen	m/s	0.030/0.025	0.045/0.050
Max. gradeability, laden/unladen	%	8/15
Service brake	/	Electromagnetic
E-Motor
Drive motor rating S2 60min	kW	1.4	1.4
Lift motor rating at S3 10%	kW	0.8	2.2
Battery	/	/	/
Battery voltage/nominal capacity K5	V/Ah	25.6/100	25.6/150
Addition Data
Type of drive control	/	AC
Sound level at driver's ear acc. to EN 12053	dB(A)	＜70
