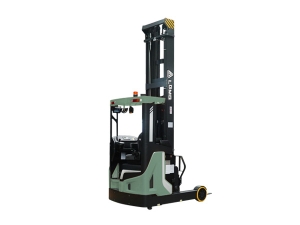

CQD16A-20A
Product selling points
  • Safe & Reliable

    Height limit positioning, elevated speed restriction, and turning speed regulation ensure operational safety during travel, lifting, and steering maneuvers. Front/rear movement end deceleration stabilizes mast motion with shock-free transitions. The integration of electromagnetic braking and hydraulic braking systems achieves short braking distances, directional stability, and jerk-free stops.

  • Convenient Operation

    Electro-hydraulic proportional control ensures precise micro-motion performance and stable operation, while AC variable frequency speed control enables infinitely adjustable speed regulation for travel, lifting, and steering drives.



  • Cost-effective & Durable

    AC drive motor, oil pump motor, and steering motor are maintenance-free, featuring a long service life, and delivering reliable performance.

  • Comfortable Driving

    Spacious operator compartment and ergonomically designed layout align with natural human operating postures, effectively reducing the risk of mishandling.

  • Easy Maintenance

    Side-pull battery replacement design eliminates the need for complex equipment disassembly during maintenance, allowing technicians to effortlessly perform inspections, repairs, and routine maintenance.

Specifications
Download
Options
Manufacturer's type designation
CQD16ACQD20A
Drive /ElectricElectric
Type of operation/SeatedSeated
Load capacity/rated loadQ(kg)16002000
Load centre distancec(mm)600600
Load distance,centre of drive axle to forkx(mm)365/176395/200
Wheelbasey(mm)14001500
Weights
Service weight incl. batterykg39604220
Axle load, mast retracted without load, drive/support arm wheelkg2420/15402560/1660
Axle load, mast extended with load, drive/support arm wheelkg830/4760746/5474
Axle load, mast retracted with load, drive/support arm wheelkg2100/34602270/3950
Wheels、Chassis
Type:solid rubber,superelastic,pneumatic,polyurethane/
Tyres size,frontΦxw(mm)Φ343×140Φ343×140
Tyres size,rearΦxw(mm)Φ285×110Φ330×110
Wheels,number front's rear(x=driven wheels)/1×/21×/2
Track width,frontb11(mm)11601160
Basic Dimensions
Mast/fork carriage tilt forward/backwardα/β(°)4°/-2°4°/-2°
lowered mast heighth1(mm)22352235
Free lifth2(mm)15631563
Lift heighth3(mm)45004500
Extended mast heighth4(mm)54105410
Overhead load guardheighth6(mm)22002200
Seat height/standing heighth7(mm)960960
Height of support armsh8(mm)270270
Height of lowered forksh13(mm)4040
Overall lengthl1(mm)24122488
Length to face of forksl2(mm)12731338
Overall widthb1(mm)12701270
Fork dimensionss/e/l(mm)35/100/115040/120/1150
Fork carriage ISO 2328,class/type A,B/2A2A
Width across forksb5(mm)200-740/200-818240-740/240-818
Distanee between support armsb4(mm)900900
Reach distancel4(mm)525595
Ground clearance,laden,under mastm1(mm)9090
Ground clearance,centre of wheelbasem2(mm)7575
Aisle width for pallets 1000x1200 crosswaysAst(mm)27202840
Aisle width for pallets 800x1200 lengthwaysAst(mm)27802900
Turning radiusWa(mm)16501750
Length across support armsl7(mm)17801900
Performance Data
Travel speed,laden/unladenkm/h10.5/10.510.5/10.5
Lift speed,laden/unladenm/s0.35/0.50.35/0.5
lowering speed,laden/unladenm/s0.45/0.450.45/0.45
Reach speed, with/without loadm/s0.1/0.10.1/0.1
Max. gradeability, with/without load%10/1010/10
Service brake /Hydraylic/electricHydraylic/electric
E-Motor
Drive motor rating S2 60 minkW6.4/76.4/7
Lift motor rating at S3 15%kW12.512.5
Battery standard/LionLion
Battery voltage, nominal capacity K5V/Ah48/30048/400
option:48/400option:48/300
Other Details
Type of drive control/ACAC
Sound level at driver's ear according to EN 12053dB/(A)6868
Technical Specification Data sheet:
