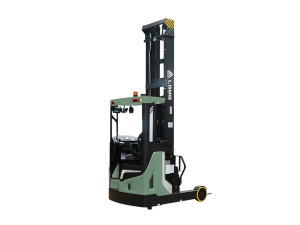

Height limit positioning, elevated speed restriction, and turning speed regulation ensure operational safety during travel, lifting, and steering maneuvers. Front/rear movement end deceleration stabilizes mast motion with shock-free transitions. The integration of electromagnetic braking and hydraulic braking systems achieves short braking distances, directional stability, and jerk-free stops.
Electro-hydraulic proportional control ensures precise micro-motion performance and stable operation, while AC variable frequency speed control enables infinitely adjustable speed regulation for travel, lifting, and steering drives.
AC drive motor, oil pump motor, and steering motor are maintenance-free, featuring a long service life, and delivering reliable performance.
Spacious operator compartment and ergonomically designed layout align with natural human operating postures, effectively reducing the risk of mishandling.
Side-pull battery replacement design eliminates the need for complex equipment disassembly during maintenance, allowing technicians to effortlessly perform inspections, repairs, and routine maintenance.
The height of the mast is higher than other models, and the highest door mast can reach 13.5M.
Manufacturer's type designation | CQD20B | ||||
Drive | / | Electric | |||
Type of operation | / | Seated | |||
Load capacity/rated load | Q(kg) | 2000 | |||
Load centre distance | c(mm) | 600 | |||
Load distance,centre of drive axle to fork | x(mm) | 405/234 | |||
Wheelbase | y(mm) | 1590 | |||
Weights | |||||
Service weight incl. battery | kg | 5200 | |||
Axle load, mast retracted without load, drive/support arm wheel | kg | / | |||
Axle load, mast extended with load, drive/support arm wheel | kg | / | |||
Axle load, mast retracted with load, drive/support arm wheel | kg | / | |||
Wheels、Chassis | |||||
Type:solid rubber,superelastic,pneumatic,polyurethane | / | ||||
Tyres size,front | Φxw(mm) | Φ400×160 | |||
Tyres size,rear | Φxw(mm) | Φ330×140 | |||
Wheels,number front's rear(x=driven wheels) | / | 1×/2 | |||
Track width,front | b11(mm) | 1290 | |||
Basic Dimensions | |||||
Mast/fork carriage tilt forward/backward | α/β(°) | 4°/-2° | |||
lowered mast height | h1(mm) | 4067 | |||
Free lift | h2(mm) | 3397 | |||
Lift height | h3(mm) | 10000 | |||
Extended mast height | h4(mm) | 10910 | |||
Overhead load guardheight | h6(mm) | 2200 | |||
Seat height/standing height | h7(mm) | 1100 | |||
Height of support arms | h8(mm) | 270 | |||
Height of lowered forks | h13(mm) | 40 | |||
Overall length | l1(mm) | 2580 | |||
Length to face of forks | l2(mm) | 1430 | |||
Overall width | b1(mm) | 1430/1270 | |||
Fork dimensions | s/e/l(mm) | 40/120/1150 | |||
Fork carriage ISO 2328,class/type A,B | / | 2A | |||
Width across forks | b5(mm) | 200-740 | |||
Distanee between support arms | b4(mm) | 1000 | |||
Reach distance | l4(mm) | 640 | |||
Ground clearance,laden,under mast | m1(mm) | 90 | |||
Ground clearance,centre of wheelbase | m2(mm) | 75 | |||
Aisle width for pallets 1000x1200 crossways | Ast(mm) | 2880 | |||
Aisle width for pallets 800x1200 lengthways | Ast(mm) | 2957 | |||
Turning radius | Wa(mm) | 1840 | |||
Length across support arms | l7(mm) | 2000 | |||
Performance Data | |||||
Travel speed,laden/unladen | km/h | 10.5/10.5 | |||
Lift speed,laden/unladen | m/s | 0.35/0.5 | |||
lowering speed,laden/unladen | m/s | 0.45/0.45 | |||
Reach speed, with/without load | m/s | 0.1/0.1 | |||
Max. gradeability, with/without load | % | 10/10 | |||
Service brake | / | Hydraylic/electric | |||
E-Motor | |||||
Drive motor rating S2 60 min | kW | 7 | |||
Lift motor rating at S3 15% | kW | 12.5 | |||
Battery standard | / | Lion | |||
Battery voltage, nominal capacity K5 | V/Ah | 48/400 | |||
option:48/300 | |||||
Other Details | |||||
Type of drive control | / | AC | |||
Sound level at driver's ear according to EN 12053 | dB/(A) | 68 |
