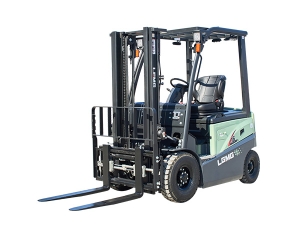

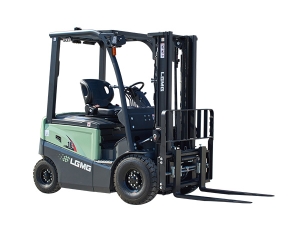

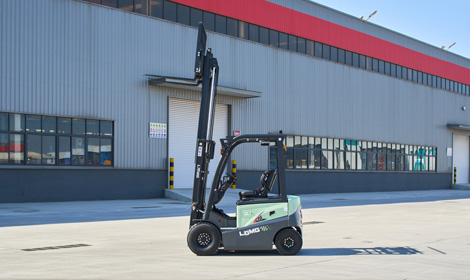

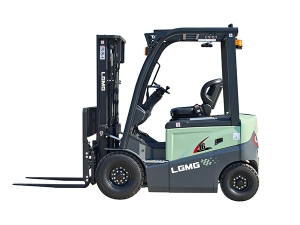

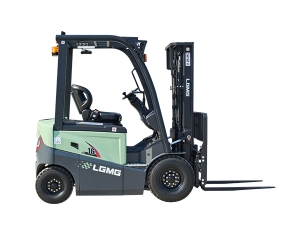

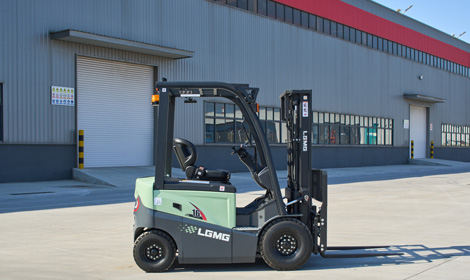

LGIV Forklift _Lingong Heavy Machinery Co., Ltd.

Manufacturer's type designation		CPD16	CPD20
Drive	/	Electric	Electric
Type of operation	/	Seated	Seated
Load capacity/rated load	Q(kg)	1600	2000
Load centre distance	c(mm)	500	500
Load distance,centre of drive axle to fork	x(mm)	381	386
Wheelbase	y(mm)	1450	1450
Weights
Service weight incl.battery	kg	2940	3180
Axle loading, laden front/rear	kg	4078/462	4611/569
Axle loading, unladen front/rear	kg	1320/1620	1460/1720
Wheels、Chassis
Type:solid,pneumatic	/	Solid/Pneumatic	Solid/Pneumatic
Tyres size,front	/	18X7-8	18X7-8
Tyres size,rear	/	5.00-8-10PR	5.00-8-10PR
Wheels,number front/rear(x=driven wheels)	/	2x/2	2x/2
Track width,front	b10(mm)	980	980
Track width,rear	b11(mm)	920	920
Basic Dimensions
Mast/fork carriage tilt forward/backward	α/β(°)	6/10	6/10
Lowered mast height	h1(mm)	2053	2053
Free lift	h2(mm)	130	130
Lift height	h3(mm)	3000	3000
Extended mast height	h4(mm)	3982	3982
Height of overhead guard	h6(mm)	2075	2075
Seat height	h7(mm)	1065	1065
Coupling height	h10(mm)	530	530
Overall length	l1(mm)	3050	3200
Length to face of forks	l2(mm)	2130	2130
Overall width	b1(mm)	1150	1150
Fork dimensions	s/e/l(mm)	35/100/920	40/100/1070
Fork carriage width	b3(mm)	1040	1040
Ground clearance,laden,under mast	m1(mm)	98	98
Ground clearance,centre of wheelbase	m2(mm)	100	100
Aisle width for pallets 1000x1200 crossways	Ast(mm)	3571	3576
Aisle width for pallets 800x1200 lengthways	Ast(mm)	3771	3776
Turning radius	Wa(mm)	1990	1990
Performance Data
Travel speed,laden/unladen	km/h	12/13	11/13
Lift speed,laden/unladen	m/s	0.27/0.35	0.25/0.35
lowering speed,laden/unladen	m/s	0.52/0.42	0.52/0.42
Max.drawbar pull,laden/unladen	N	7000	7000
Max.Gradient performance,laden/unladen S2 5 min	%	12/15	12/15
Service brake	/	Hydraulic	Hydraulic
E-Motor
Drive motor rating S2 60 min	kw	6.8	6.8
Lift motor rating at S3 15%	kw	8.6	8.6
Battery standard	/	Lion	Lion
Battery voltage/nominal capacity K5	V/Ah	51.2/206	51.2/206
option:51.2/277/412	option:51.2/277/412
Battery dimensions l/w/h	mm	975/530/628	975/530/628
Other Details
Type of drive control	/	AC	AC
Operating pressure for attachments	MPa	14.5	14.5
Oil volume for attachments	l/min	30	30
Sound level at driver's ear according to EN 12053	dB/(A)	72	72
