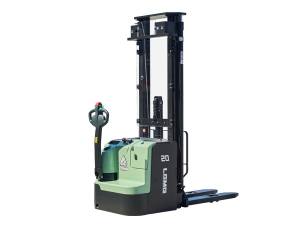

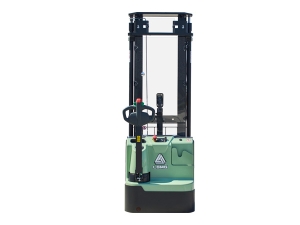

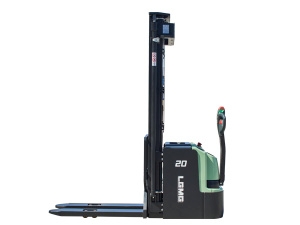

 Manufacturer's type designation |
| CDDB12(3600) | CDDB16 | CDDB20 |
| Drive | / | Battery |
| Type of operation | / | Pedestrian |
| Load capacity/rated load | Q(t) | 1.2 | 1.6 | 2 |
| Load centre distance | c(mm) | 600 |
| Load distance, centre of drive axle to fork | x(mm) | 710 | 647 |
| Wheelbase | y(mm) | 1097 | 1293 | 1429 |
| Weight |
| Service weight incl.battery | kg | 620 | 1340 | 1579 |
| Axle loading, laden front/rear | kg | 520/1300 | 930/2010 | 1000/2579 |
| Axle loading, unladen front/rear | kg | 440/180 | 850/490 | 900/679 |
| Wheels / Chassis |
| Tires | / | PU |
| Tire size, front | Φx w(mm) | Φ 210x75 | Φ 230x70 |
| Tire size, rear | Φx w(mm) | Φ 84x93 | Φ 84x70 |
| Additional wheels(dimensions) | Φx w(mm) | Φ 100x50 | Φ 150x54 |
| Wheels, number front/rear(x=driven wheels) | / | 1x + 1/2 | 1x + 1/4 |
| Tread, front | b10(mm) | 550 | 522 |
| Tread, rear | b11(mm) | 400/515 | 390/505 |
| Dimensions |
| Lowered mast height | h1(mm) | 1930 | 1958 | 2078 |
| Free Lift height | h2(mm) | 1514 | / | / |
| Lift height | h3(mm) | 1514 | 2830 | 2830 |
| Extended mast height | h4(mm) | 1930 | 3380 | 3500 |
| Height of tiller in drive position min./max. | h14(mm) | 710/1150 | 850/1385 |
| Height,lowered | h13(mm) | 90 |
| Overall length | l1(mm) | 1710 | 1964 | 2100 |
| Length to face of forks | l2(mm) | 560 | 814 | 950 |
| Overall width | b1(mm) | 800 | 820 |
| Fork dimensions | s/e/l(mm) | 60/180/1150 |
| Distance between fork-arms | b5(mm) | 570/685 |
| Ground clearance, centre of wheelbase | m2(mm) | 24 | 28 | 23 |
| Aisle width for pallets 1000X1200 crossways | Ast(mm) | 2167 | 2406 | 2536 |
| Aisle width for pallets 800X1200 lengthways | Ast(mm) | 2133 | 2393 | 2523 |
| Turning radius | Wa(mm) | 1300 | 1510 | 1640 |
| Performance Data |
| Travel speed, laden/unladen | km/h | 4.2/4.5 | 5.7/6.0 | 5.4/6.0 |
| Lift speed, laden/unladen | m/s | 0.11/0.14 | 0.13/0.20 |
| Lowering speed, laden/unladen | m/s | 0.13/0.11 | 0.28/0.23 |
| Max. gradeability, laden/unladen | % | 5/10 | 6/12 | 6/10 |
| Service brake | / | Electromagnetic |
| E-Motor |
| Drive motor rating S2 60min | kW | 0.65 | 1.3 | 1.7 |
| Lift motor rating at S3 4.5% | kW | 2.2 | 3.2 |
| Battery | / | Lion |
| Battery voltage, nominal capacity K5 | V / Ah | 24/60 | 24/150 |
| Energy consumption acc: to VDI cycle | kWh/h | 0.6 | 1.59 | 1.7 |
| Additional Data |
| Type of drive control | / | DC | AC |
| Sound level at driver's ear acc. to EN 12053 | dB(A) | <70 |
